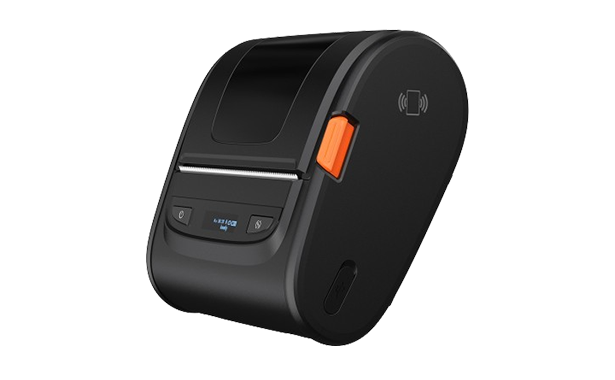

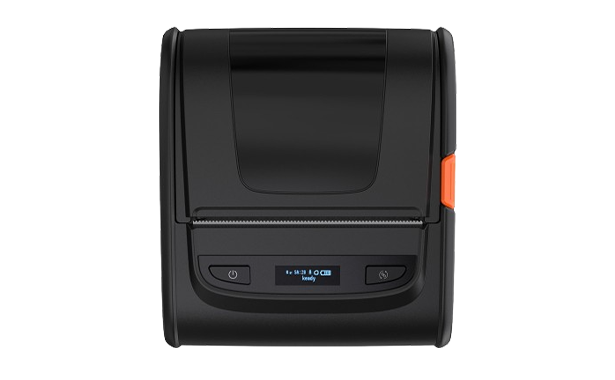

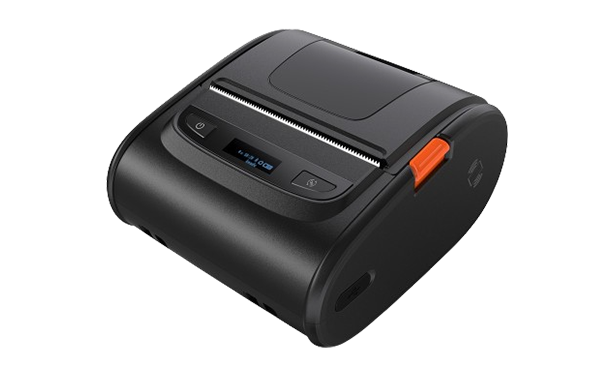

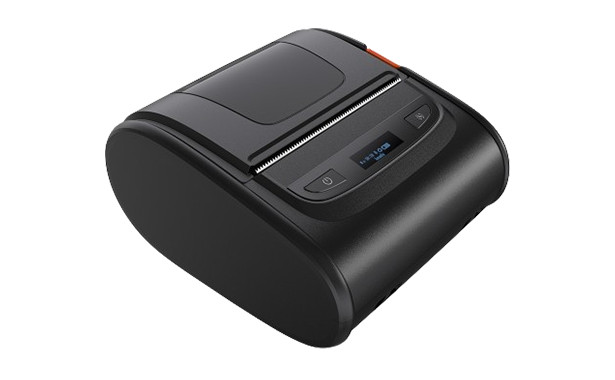

3 Inch Mobile Label Printer B300

Mobile Printer

Product Features

• Easy to carry: Compact and portable, support Receipt and label dual printing capabilities
• Faster printing speed: Up to Max. 120mm/s
• High definition: 203DPI resolution support watermark printing, two color thermal printing is optional
• Support multi-connection mode: Bluetooth 4.2 Low Energy and passive NFC tags for quick pair, and WiFi optional
• Suitable for mobile scenarios: Retails, transportation, manufacturing, traffic enforcement and so on

Application Industries

Transportation And Logistics

Consult now

Overview Specification Download Operation film FAQ Contact

Overview

Specification

Print method

Direct Thermal
Dot density

576dot/line
Print width

72 mm
Resolution

8dots/mm (203DPI)
Print speed

120mm/second
Interface

Standard: USB 2.0, Bluetooth 4.2 Optional: Bluetooth 5.0, WIFI 2.4G/5G
Paper width

30~80 mm
Paper diameter

50 mm
Paper thickness

0.053~0.16 mm
Print commands

Compatible to TSPL, CPCL, ESC/POS, ZPL, JPL
Fonts

/
Character Size

Simplified Chinese GB18030, Traditional Chinese BIG5, Korean KSC5601, Japanese (optional)
Barcode mode

UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Codabar, Code 93, ITF, Interleaved 2 of 5 QR Code, PDF417, Data Matrix
Code page

/
Dimension

105mm(W) * 62mm(H) * 118mm(D)
Weight(including battery)

0.45 kg
Power adaptor

Input: AC 100-240V, 50-60Hz. Output: DC 5V, 2000mA
Lithium battery

2500mAh/7.4V rechargeable lithium battery
Charge period

/
Work environment

0~52°C, 10~85% noncondensing
Storage environment

-20~60°C, 5~90% noncondensing
Drop resistance

1.5M
Mechanism

50KM
