Max 120mm/s Print Speed
203 DPI High-Definition Printing Resolution
Compact and Portable for Easy Carrying
Supports Printing Receipts and Labels
Offers USB 2.0 and Bluetooth 4.2 BLE for Quick Pairing, with Wi-Fi as an Option
Suitable for Mobile Use in Retail, Transportation, Manufacturing, Traffic Enforcement
MODEL
B310
Resolution
203DPI
Printing Method
Direct Thermal
Max. Print Speed
120mm/Second
Max. Print Width
72mm
TPH Print Length
50Km
CPU
400 MHZ, 32 bit, ARM 9
Memory RAM
8 MB PSRAM
Memory ROM
16 MB Flash Memor
Sensors
Gap, Cover Open, Power Out, Paper Out, Overheat Detection Top Black Mark, (Bottom Black Mark, Optional)
Power
Input: AC 100-240V, 50-60Hz.
Output: DC 5V, 2000mAh
Battery Capacity
2500mAh/7.4V Rechargeable Lithium Batter
Communication Interface
· USB 2.0, Bluetooth 4.2 BLE (Standard)
· Bluetooth 5.0, WIFI 2.4G/5G (Optional )
User Interface
· Type-C, Dock charger (Optional)
1D Barcode
UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39 Codabar, Code 93, ITF, Interleaved 2 of 5
2D Barcode
QR Code, PDF417, Data Matrix
Rotation
Font and Barcode Support 0, 90, 180, 270 Degree
Printer Language
Compatible to TSPL, CPCL, ESC/POS, ZPL, JPL
Media Type
Continuous, Die-cut, Black Mark
Media Width
30~80 mm
Paper-Cut Mode
Tear-off Mode
Physical Dimension
105mm(W) * 62mm(H) * 118mm(D)
Net Weight
450g
Character
Simplified Chinese GB18030, Traditional Chinese BIG5 Korean KSC5601, Japanese (Optional)
Software Function
· Windows Driver
· WeChat Print Applet
· BarTender Software
· Android/IOS Printing and Editing Software
Dealer Option

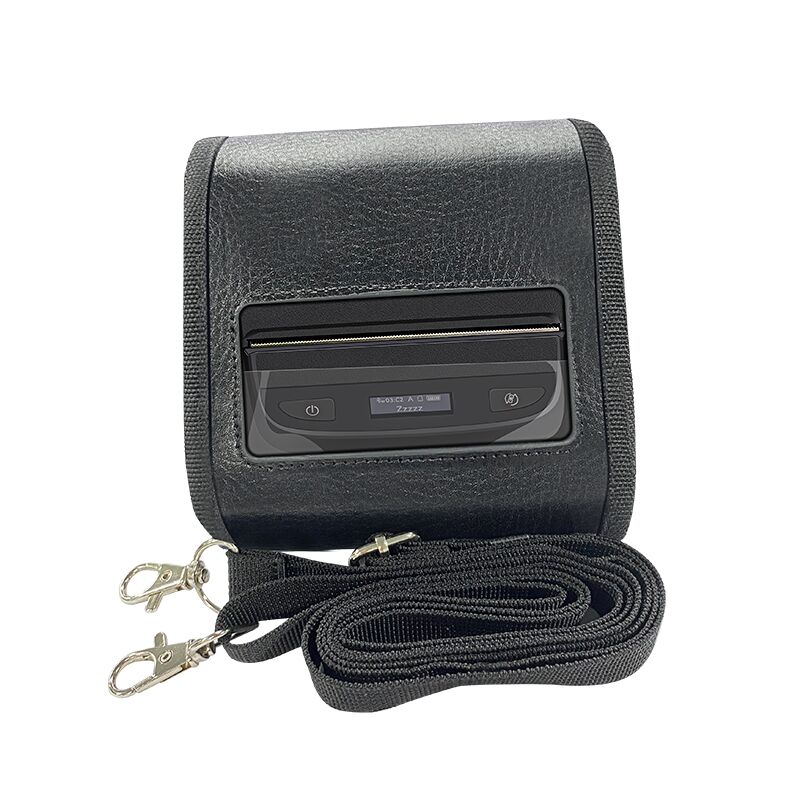

Soft protection case
