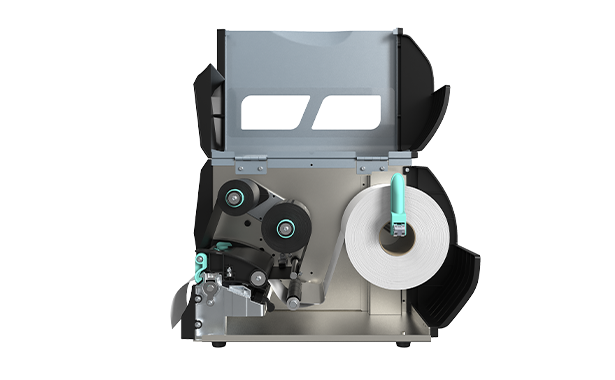

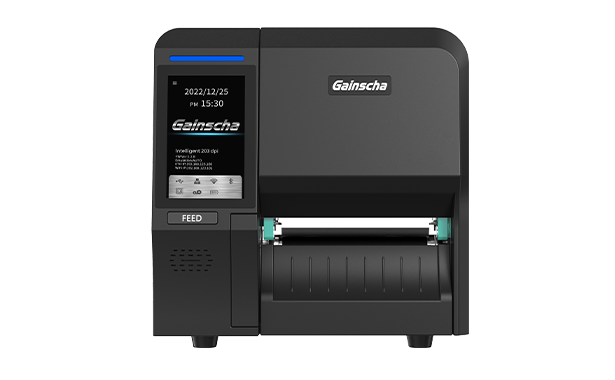

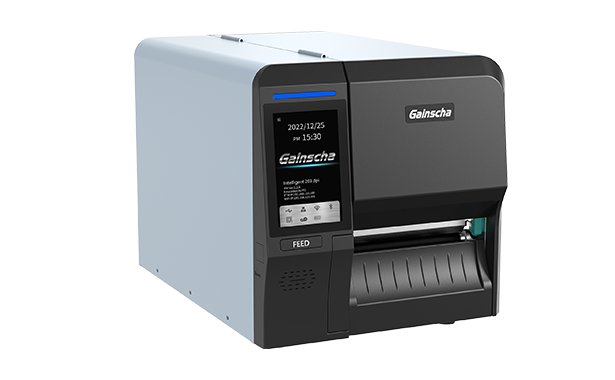

Industrial Printer

An industrial printer is a type of printer designed for heavy-duty use in industrial environments. These printers are built to withstand harsh conditions, high-volume printing tasks, and a wide range of media types.

Here are some features of an industrial printer:

Durability: Industrial printers are built to withstand tough industrial environments, with rugged metal frames and durable components that can withstand dust, moisture, and other hazards.
Print speed: Industrial printers are designed to handle high-volume printing tasks, with print speeds ranging from 4-12 inches per second or more.
Print resolution: Industrial printers typically have high print resolutions, ranging from 203 to 600 dots per inch (dpi), which produces clear and crisp text and images.
Connectivity: Industrial printers come with a range of connectivity options, including Ethernet, USB, Wi-Fi, and serial connections, making it easy to connect to a network or computer.
Media handling: Industrial printers can handle a wide range of media types, including different sizes and types of labels, tags, and other materials.
Software: Industrial printers come with advanced software that allows users to design and print labels, as well as customize barcode types and formats.

Specification

• MODEL

  GI-2408T/GI-3406T

• Level

  Empower

• Resolution

  GI-2408T: 8 dots/mm (203DPI)
  GI-3406T: 12 dots/mm (300DPI)

• Printing Method

  Thermal Transfer & Direct Thermal

• Max. print speed

  GI-2408T: 254mm(10”)/second
  GI-3406T: 152 mm(6")/second

• Max. print width

  GI-2408T: 108 mm (4.25")
  GI-3406T: 104 mm (4.09")

• Max. print length

  GI-2408T: 2,286 mm (90")
  GI-3406T: 1,016 mm (40")

• CPU

  400 MHz, 32 bits, ARM9

• Memory RAM

  256 MB SDRAM

• Memory ROM

  256 MB Flash

• Interface

  • USB 2.0 High Speed 480Mbps
  • USB Host 2.0, for scanner or PC keyboard
  • RS-232
  • Internal Ethernet 10/100Mbps
  • Internal Bluetooth 4.0 (factory option) • Internal Wi-Fi (factory option)

• Real Time Clock

  Standard

• Buzzer

  Standard

• Dealer options

  • Guillotine (full cut or partial cut)
  • Peeler

• Sensors

  • Gap transmissive sensor (position adjustable)
  • Black mark reflective sensor (position adjustable)
  • Head open sensor
  • Ribbon out sensor
  • Label end sensor
  • Label begin sensor

• Power

  Internal universal switching power supply, Input: AC 200-240V，1.5A， 50-60Hz，Output: DC 24V，5A，120W

• User Interface

  • 1 power switch
  • 1 button (Feed)
  • 1 LED (Online, Error, Ribbon status)
  • Capacitive Touch Screen, TFT LCD 4.3" 16 bits color, 272 x 480 pixels, with back lights

• Internal fonts

  • 8 alpha-numeric bitmap fonts
  • True type font engine (need to download scalable font file)

• 1D Barcode

  Code 11, Code 39, Code 93, Code 128 (subsets A, B, C), UPC-A, UPC-E, UCC-128, Codabar, EAN/JAN-8, EAN/JAN-13, Interleaved 2 of 5, ITF14, MSI Pleassy, PostCode, Telepen

• 2D Barcode

  QR Code, Micro QR Code, PDF417, Micro PDF417, MaxiCode, Aztec Code, Data Matrix

• Rotation

  Font and barcode support 0, 90, 180, 270 degree

• Printer language

  Compatible to TSPL, EPL, ZPL, ZPL II, DPL

• Ribbon

  450 meters long, max. OD 105 mm, 1" core (ink coated outside)

• Ribbon width

  Max.115 mm (4.5")

• Media type

  Continuous, die-cut, black mark, fan-fold (outside wound)

• Media width

  20 ~ 120 mm (0.78" ~ 4.72")

• Media thickness

  0.06~0.254 mm (2.36~10 mil)

• Media core diameter

  25.4 ~ 76.2 mm (1"~3")

• Label roll capacity

  203 mm (8") OD

• Label length

  GI-2408T: 5 ~ 2,286 mm (0.2" ~ 90")
  GI-3406T: 5~1,016 mm (0.2"~40")

• Physical dimension

  425mm(L) x 255mm(W) x 265mm(H)

• Net Weight

  9.65kg

• Enclosure

  Die-cast based print mechanism and metal cover with large clear media view window

• Safety regulation

  FCC Class A, CE Class A, CCC, BIS, CB

• Environment condition

  Operation: 5 ~ 40°C, 25 ~ 85% non-condensing, Storage: -40 ~ 60°C, 10 ~ 90% non-condensing

• Comply with RoHS, REACH, WEEE

  • Driver and software CD
  • Quick start guide
  • USB cable
  • Power cord
