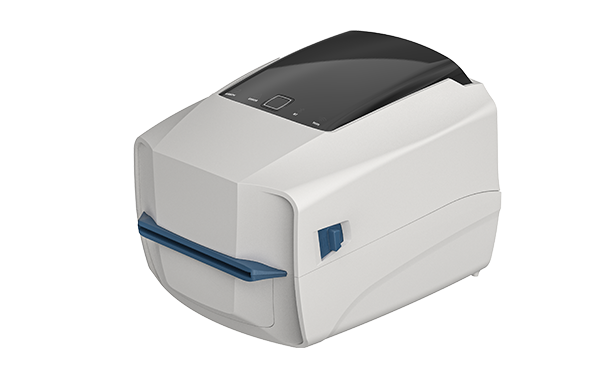

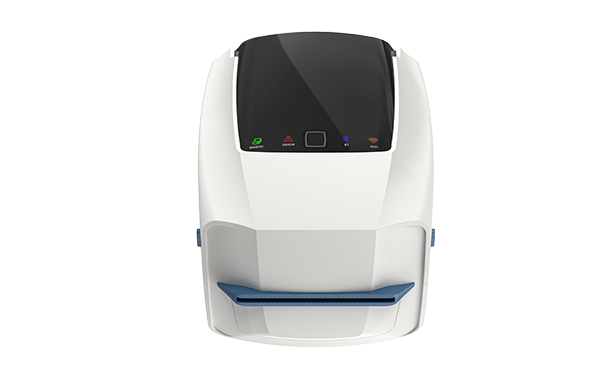

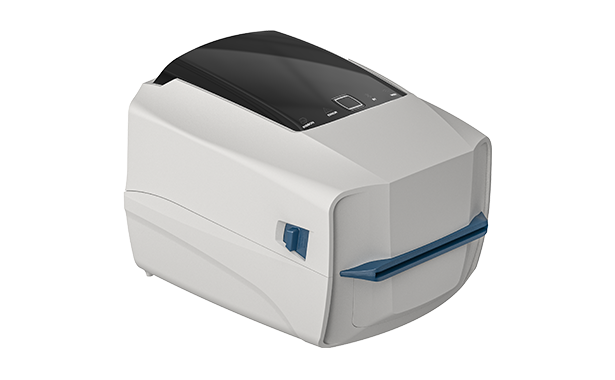

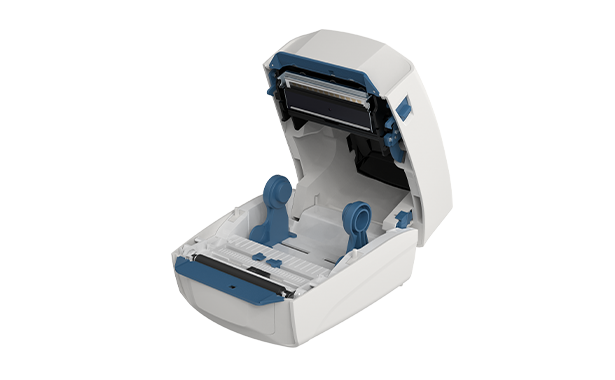

4 Inch Desktop TT Barcode Printer GE-2406T

Elite Series

4 Inch Desktop TT Barcode Printer GE-2406T
4 Inch Desktop TT Barcode Printer GE-2406T
4 Inch Desktop TT Barcode Printer GE-2406T
4 Inch Desktop TT Barcode Printer GE-2406T
4 Inch Desktop TT Barcode Printer GE-2406T
4 Inch Desktop TT Barcode Printer GE-2406T

Product Features

• Support both thermal transfer/direct thermal print modes
• Thermal transfer: support wax, resin, wax/resin ribbon, ideal for coated label, cloth tags, care labels etc.
• Direct thermal: direct printing on thermal paper
• Support serial port, Bluetooth, wireless Wi-Fi communication interface
• Standard interface configuration: USB 2.0, LAN Ethernet port, USB HOST
• 64 MB SDRAM, 16 MB Flash memory
• 400 MHz 32-bit ARM9 processor
• Provide True Type Font download, the printing text is clearer and nicer
• Print Emulations: EPL, ZPL, ZPL II, DPL, TSL, free switching of multiple emluations
• Provide Windows/Android Printer Utility, Windows/Android/iOS SDK for secondary development
• Windows/Linux driver, BarTender label editing software available
• Retail , shelf labels, product identification, healthcare, invento

Application Industries

  • Transportation And Logistics

    Transportation And Logistics

  • Retail




A Budget-Friendly Option:
1. Affordable Pricing: Affordable thermal printers typically come with relatively low price tags, making them an ideal choice for small retail businesses and startups.
2. Low Maintenance Costs: These printers are often easy to maintain, reducing the costs associated with repairs and consumables replacement.
Meeting Basic Needs:
1. Price Label Printing: Affordable thermal printers are adequate for the basic needs of retailers, including price label and sales receipt printing.
2. Basic Functionality: They offer essential printing functions suitable for the day-to-day requirements of small-scale retail operations.
Applicability and Limitations:
1. Suitable for Small Retailers: These printers are an economically viable choice for small retailers or budding entrepreneurs, meeting their fundamental printing needs.
2. Limited Advanced Features: However, affordable thermal printers usually lack some advanced features like high-resolution printing or complex connectivity options.
3. Not Suitable for Large-Scale Retailers: For large-scale retailers or businesses requiring advanced functionality, budget-friendly thermal printers may not suffice.
Affordable thermal printer are a smart choice for the retail industry, particularly well-suited for small retailers and startups. They provide basic functionalities while reducing costs. However, for large retailers or businesses in need of advanced features, considering higher-end printing solutions may be necessary. In the retail sector, ensuring that the chosen printer aligns with specific needs is crucial to strike a balance between benefits and costs.




  • Grade


  • Resolution

    GE-2406T: 8dots/mm (203DPI)
    GE-3405T: 12dots/mm (300DPI)

  • Printing Method

    Thermal Transfer & Direct Thermal

  • Max. print speed

    GE-2406T: 152 mm (6")/second
    GE-3405T: 127 mm (5")/second

  • Max. print width

    GE-2406T: 104 mm (4.1")
    GE-3405T: 108.4 mm (4.27")

  • Max. print length

    GE-2406T: 2,794 mm (110")
    GE-3405T: 1,016 mm (40")

  • CPU

    400 MHZ, 32 bits, ARM9

  • Memory RAM

    64 MB SDRAM

  • Memory ROM

    16 MB Flash Memory

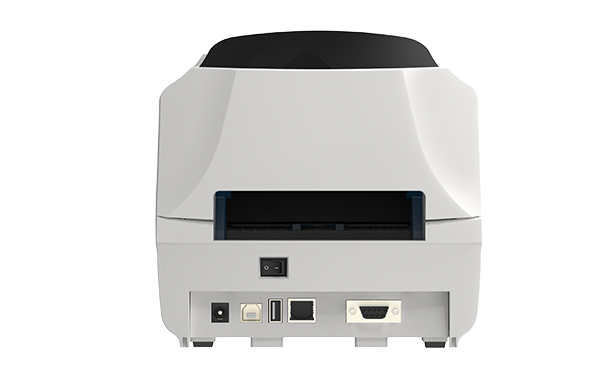

  • Interface

    • USB 2.0 High Speed 480Mbps
    •USB Host 2.0, for scanner or PC keyboard

  • Sensors

    Head open sensor, Ribbon end sensor, Reflective sensor (moveable), Transmissive sensor

  • Power

    External universal switching power supply
    Input: AC 100-240V, 2.5A, 50-60Hz, Output: DC 24V, 2.5A, 60W

  • User Interface

    1 power switch, 1 button (Feed & Pause), 5 LEDs (Online white, Error red, Ribbon green, Bluetooth blue, WIFI & Communication orange)

  • Internal fonts

    • 8 alpha-numeric bitmap fonts
    • True type font engine (need download scalable font file)
    • GB18030 Simplified Chinese 24x24, 16x16
    • BIG5 traditional Chinese 24x24, 16x16

  • 1D Barcode

    QR Code, Micro QR Code, PDF417, Micro PDF417, MaxiCode, Aztec Code, Data Matrix

  • 2D Barcode

    Code 11, Code 39, Code 93, Code 128 (subsets A, B, C), UPC-A, UPC-E, UCC-128, Codabar, EAN/JAN-8, EAN/JAN-13, Interleaved 2 of 5, ITF14, MSI Pleassy, PostCode, Telepen

  • Rotation

    Font and barcode support 0, 90, 180, 270 degree

  • Printer language

    Compatible to TSPL, EPL, ZPL, ZPL II, DPL

  • Ribbon

    110 M long, max. OD 40mm, 0.5" core (ink coated outside)

  • Ribbon width

    40mm~110mm (1.57"~4.3")

  • Media type

    Continuous, die-cut, black mark, fan-fold, notched (outside wound)

  • Media width

    20~118mm (0.7"~4.6")

  • Media thickness

    0.06~0.19mm (2.34~7.4 mil)

  • Media core diameter

    25.4mm~38mm (1"~1.49")

  • Label roll capacity

    127 mm (5") OD

  • Label length

    GE-2406T: 5~2,794 mm(0.2"~110") GE-3405T: 5~1,016 mm(0.2"~40")

  • Physical dimension

    225mm(D) x 194.5mm(W) x 184mm(H)

  • Net Weight


  • Enclosure

    ABS plastic

  • Safety regulation

    FCC Class A, CE Class A, CCC, BIS, CB

  • Environment condition

    Operation: 5~40°C, 25~85% non-condensing Storage: -40~ 60°C, 10~90% non-condensing

  • Environmental concern

    Comply with RoHS, REACH, WEEE

  • Accessories

    • Windows labeling software CD disk
    • Quick start guide
    • USB cable
    • Power cord
    • External universal switching power supply

Operation film
