Overview

Specification

• Level

  Standard

• Resolution

  GS-2406T: 8dots/mm (203DPI)
  GS-3405T: 12dots/mm (300DPI)

• Printing Method

  Thermal Transfer & Direct Thermal

• Max. print speed

  GS-2406T: 152mm (6")/second
  GS-3405T: 127mm (5")/second

• Max. print width

  GS-2406T: 104 mm (4.1")
  GS-3405T: 108.4 mm (4.27")

• Max. print length

  GS-2406T: 2,794 mm (110")
  GS-3405T: 1,016 mm (40")

• CPU

  400 MHz, 32 bits, ARM9

• Memory RAM

  64 MB SDRAM

• Memory ROM

  32 MB Flash / 128 MB Flash(factory option)

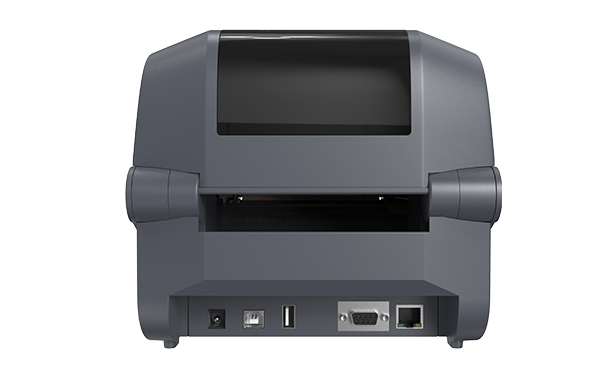

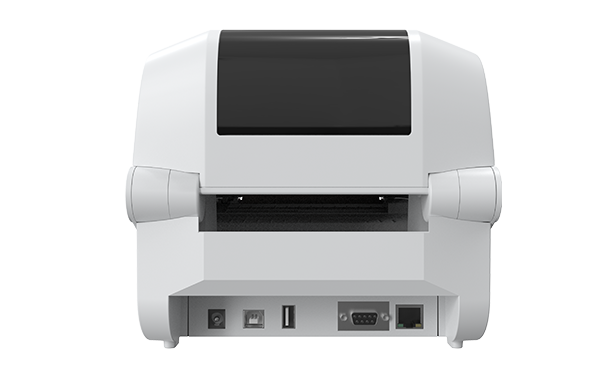

• Interface

  • USB 2.0 High Speed 480Mbps
  • USB Host 2.0, for scanner or PC keyboard
  • RS-232(factory option)
  • Internal Ethernet 10/100Mbps(factory option)
  • Internal Bluetooth 4.0 (factory option)
  • Internal WiFi (factory option)

• Real Time Clock

  N/A

• Buzzer

  N/A

• Dealer options

  • Guillotine cutter (full cut and partial cut)
  • Peeler

• Sensors

  • Head open sensor
  • Ribbon end sensor
  • Black mark reflective sensor (moveable)
  • Gap transmissive sensor (moveable)

• Power

  External universal switching power supply
  Input: AC 100-240V, 2.5A, 50-60Hz, Output: DC 24V, 2.5A, 60W

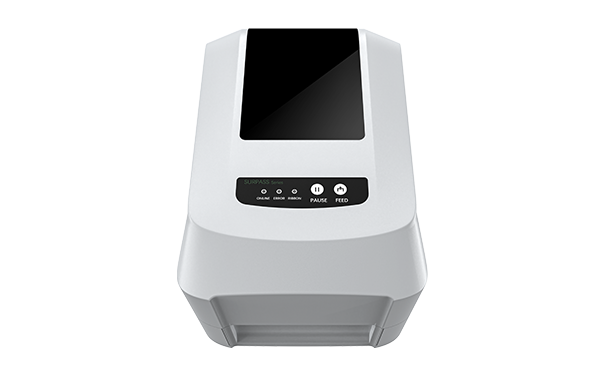

• User Interface

  • 1 power switch
  • 2 buttons (Feed & Pause)
  •3 LEDs (Online, Error, Ribbon status)

• Internal fonts

  • 8 alpha-numeric bitmap fonts
  • True type font engine (need to download scalable font file)

• 1D Barcode

  Code 11, Code 39, Code 93, Code 128 (subsets A, B, C), UPC-A, UPC-E, UCC-128, Codabar, EAN/JAN-8, EAN/JAN-13, Interleaved 2 of 5, ITF14, MSI Pleassy, PostCode, Telepen

• 2D Barcode

  QR Code, Micro QR Code, PDF417, Micro PDF417, MaxiCode, Aztec Code, Data Matrix

• Rotation

  Font and barcode support 0, 90, 180, 270 degree

• Printer language

  Compatible to EPL, ZPL, ZPL II, DPL, TSPL

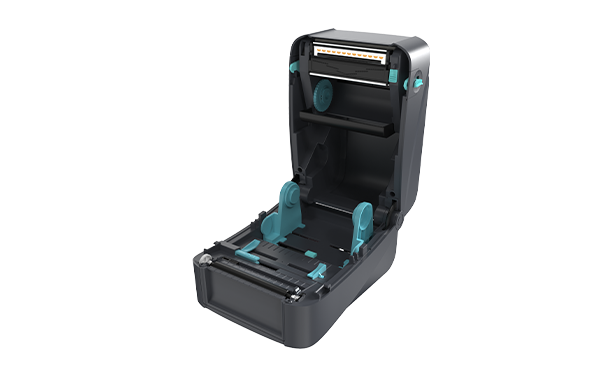

• Media type

  Continuous, die-cut, black mark, fan-fold, notched (outside wound)

• Media width

  20 ~ 118 mm (0.7" ~ 4.6")

• Media thickness

  0.055 ~ 0.19 mm (2.16 ~ 7.4mil)

• Media core diameter

  25.4 mm (1")

• Label roll capacity

  127 mm (5") OD

• Label length

  GS-2406T: 5 ~ 2,794mm (0.2" ~ 110")
  GS-3405T: 5 ~ 1,016mm (0.2" ~ 40")

• Physical dimension

  280mm(L) x 200mm(W) x 182mm(H)

• Net Weight

  2.5kg

• Enclosure

  ABS plastic

• Ribbon

  300 meters long, max. OD 67mm, 1"core (ink coated outside)

• Ribbon width

  30 ~110 mm (1.18" ~ 4.3")

• Environment condition

  Operation: 5~40°C, 25~85% non-condensing
  Storage: -40~60°C, 10~90% non-condensing

• Environment concern

  Comply with RoHS, REACH, WEEE

• Accessories

  • Driver and software CD
  • Quick start guide
  • USB cable
  • Power cord
  • External universal switching power supply
  • 1" ribbon spindle x 2
