Superior UHF RFlD Performance
Powered by the lmpinj E710 chip, achieving a remarkable reading speed of up to 1300+ tags/secand ensuring capture of swiftly moving items with an impressive accuracy rate of 99.7%.
Two Antenna Options to Meet the Diverse Demands
Choose either the 6dBi or 9dBi circularly polarized antenna, with adjustable output power foreffective reading distances up to 7 meters (6dBi) and 12 meters (9dBi). Perfect for diverseapplications such as warehouse management, logistics sorting, vehicle access control, and archives& library management, etc.
Industrial-grade Quality for Robust Durability
Featuring a robust plastic and aluminum alloy casing with industrial-grade dust and water proof,resilient against dust, oil, and moisture.
Versatile Interfaces for Flexible Connection
Supporting RS232 and RJ45 interfaces, with optional RS485, Wiegand, GPl0, USB 2.0 interfaces.

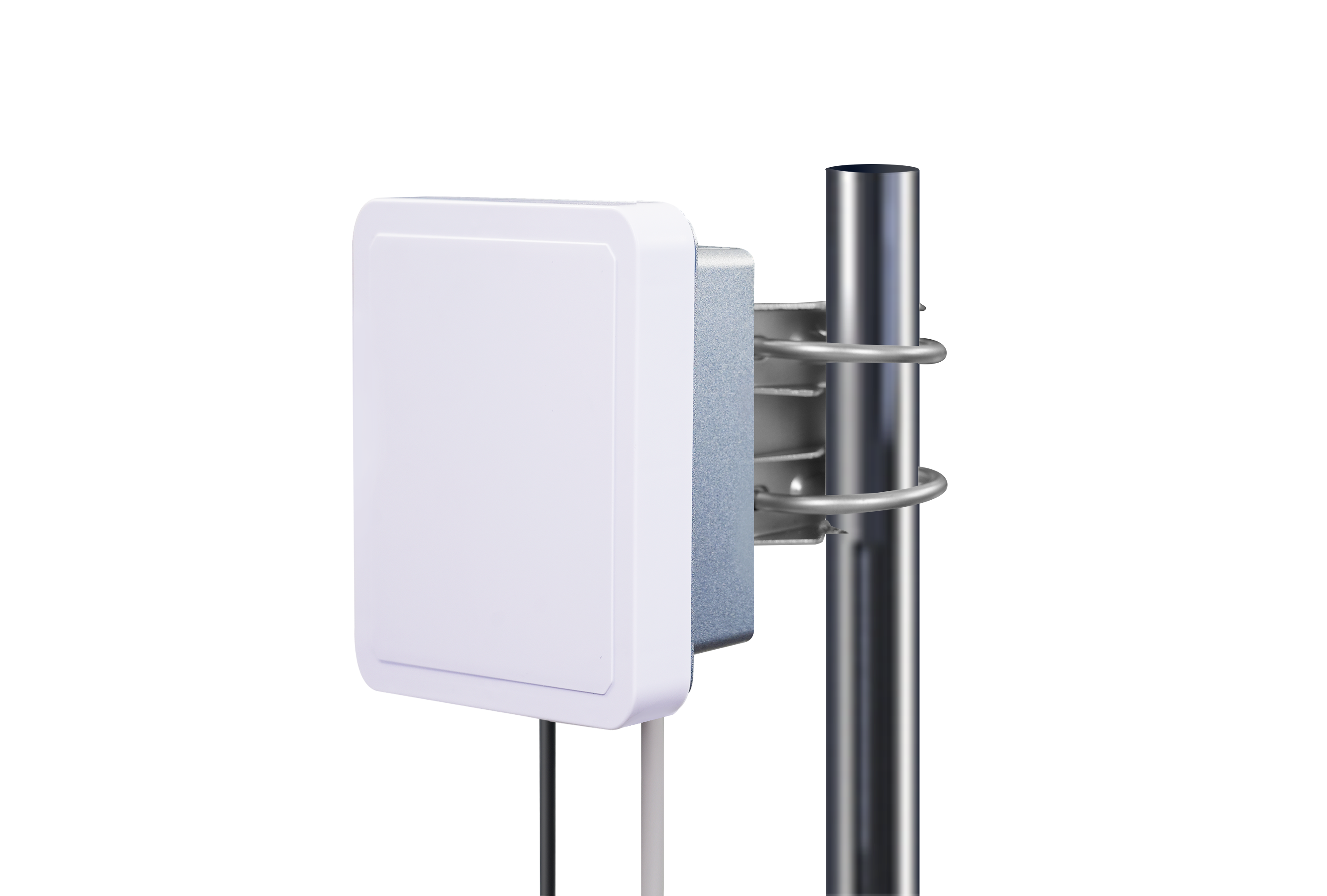

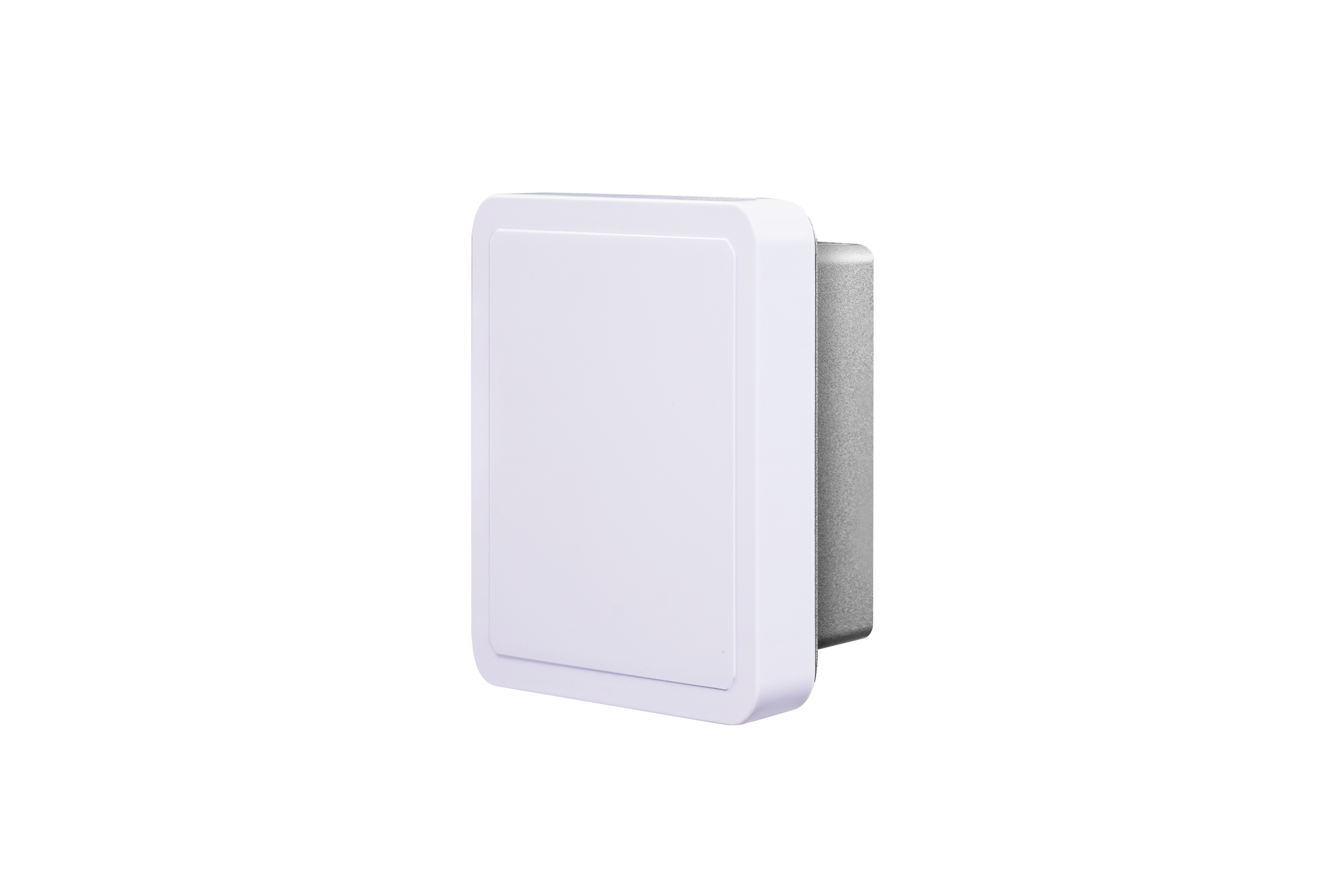

Integrated Antenna Design for Easy Deployment
Compact and sleek with a built-in antenna, the device is equipped with a bracket for flexibledeployment in various scenarios.
Retail
Manufacturing
Warehousing & Distribution
Entertainment & Service Industry
Dimensions
257mmx257mmx52mm(9dBi)
130mmx130mmx50mm(6dBi)
Weight
1800g (9dBiy/ 600g(6dBi)
RFID
Protocol: 1s018000-6C(EPC C1G2)
Frequency: 860~960MHz(Adjustable to meet therequirements of different countries or regions)
Output power: 0-33dBm(Adjustable)
Antenna
Optional circularly polarized antenna: 6dBi/9dBi
Typical reading range: over 7m(6dBi)/12m(9dBi)
Power Supply
+9V power supply, PoE power supply(optional)
Interface
Support RS232, RJ45; optional RS485, Wiegand. GPI0, USB2.0, etc.
Protection
IP67
Environmental
Operating Temp.: -10~+55°C
Storage Temp.:-20~+75°C
Humidity: 5%RH ~95%RH(No condensation)
ESD: +/-15kv Air; +/-8kv contact
