Specification

• Model

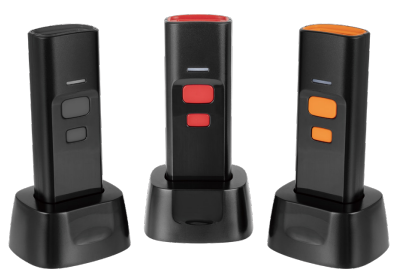

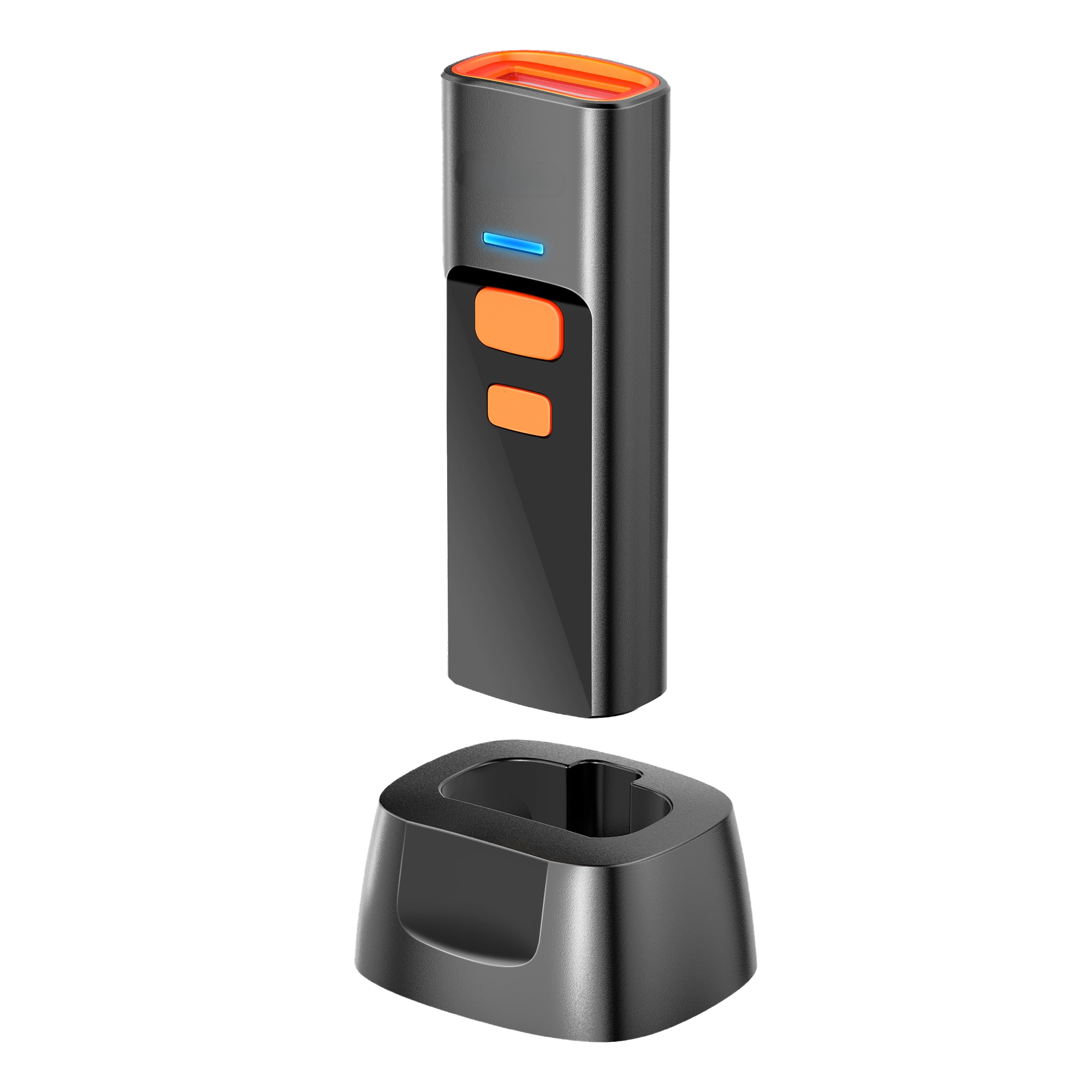

  BT80D

• Wireless Communication

  Instant mode, storage mode

• Method of Communication

  USB(USB-KBW,USB-COM),wireless 2.4GWireless Bluetooth (HID, SPP, BLE)

• Wireless Standard

  2.4GHZ(ISM frequency band), Bluetooth 4.2

• Transmit Distance

  ≥60meters 2.4G;30meters Bluetooth(Open distance

• Storage Capacity

  350Kb(over 20,000 Product codes

• Battery Capacity

  1100mAh

• Charging Time

  About 4.5 hours(5V@1000mA)

• Continuous Scan Time

  ≥16hours

• Standby Time

  ≥4 weeks

• Support System

  Windows,Mac OS,l0S,Linux,Unix，Android

• Product Weight

  82g(With Charge base)Base(30g)

• Packed Weight

  100g(USB)

• Appearance Dimension

  Scanner L89.7mm*W32mm*H20mm
  Base:54*45.9*27.1 mm

• Packed Dimension

  L167mm*W110mm*H40mm

• Drop

  Around 1.5m

• Port Type

  RJ-45-USB (Type B)

• Power Input

  DC 5V 1A

• Current

  180mA(WORK)

• Working Temperature

  0℃ to 50℃

• Storage Temperature

  -20℃ to 60 ℃

• Working Humidity

  5% to 95%(Non-Condensing)

• Transportation Vibration Test

  10H@125RPM

• Sensor

  CMOS

• Pixel

  300,000 Global
  CMOS 640*480

• Reading Precision

  ≥4mil/0.1mm(PCS90%, CODE 39)

• Depth of Field

  60mm~740mm

• Decoding Speed

  65CM/S

• Print Contrast

  ≥15%

• Prompt Mode

  LED, Buzzer

• Scanning Mode

  Trigger, Induction, Continuous

• Ambient lllumination

  Dark Environment, Indoor Natural Light

• Reading Angle

  Roll: +360°, Pitch:+60°, Skew: +55°

• Barode Decoding

  1D: UPC-A, UPC-E,EAN-8,EAN-13,Code 128,GS1-128, Code 39, Code 32. Code 93, Code 11,Interleaved 2 of 5, Matrix 2 of 5, industrial 2 of 5($traight 2 of 5), Standard 2 of 5 (ATA 2 of 5), Codabar(NW-7),MSl, GS1 Databar(Omnidirectional, Limited, Expanded), China Post, Telepen, Febraban, GS1 Composite etc

  2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code, etc. CODE39,10mil/0.25mm,PCS90%(Test Conditions)

• Depth of Field

  Code 39:0.075mm(3mil) 70mm-180mm
  UPC/EAN:0.33mm(13mil) 60mm-540mm
  Alipay Payment Code: 6inch 60mm-740mm
  Code 39:0.25mm(10mil) 70mm-410mm
  WeChat Payment Code: 6inch 60mm-640mm
