Specification

• Model

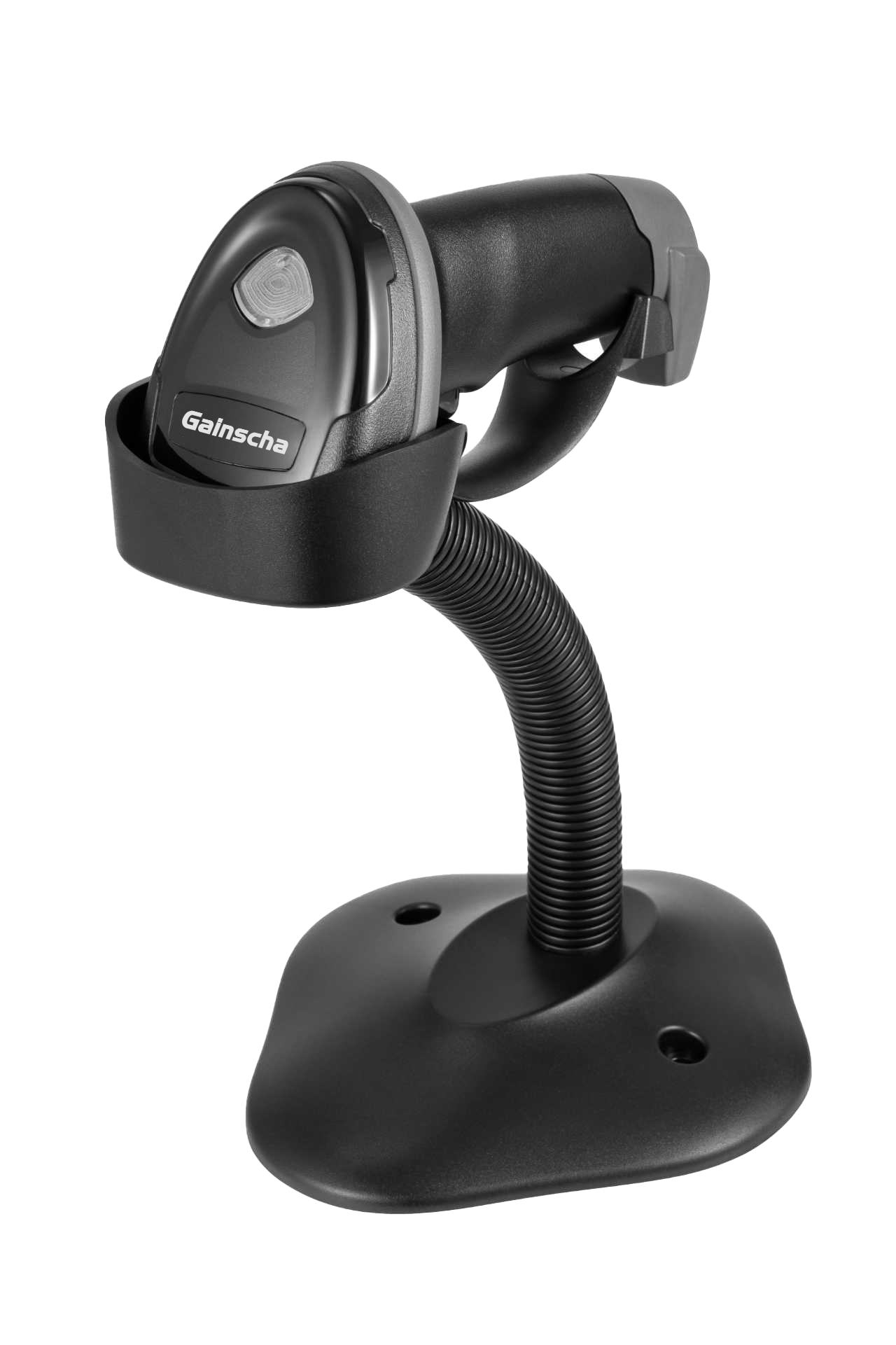

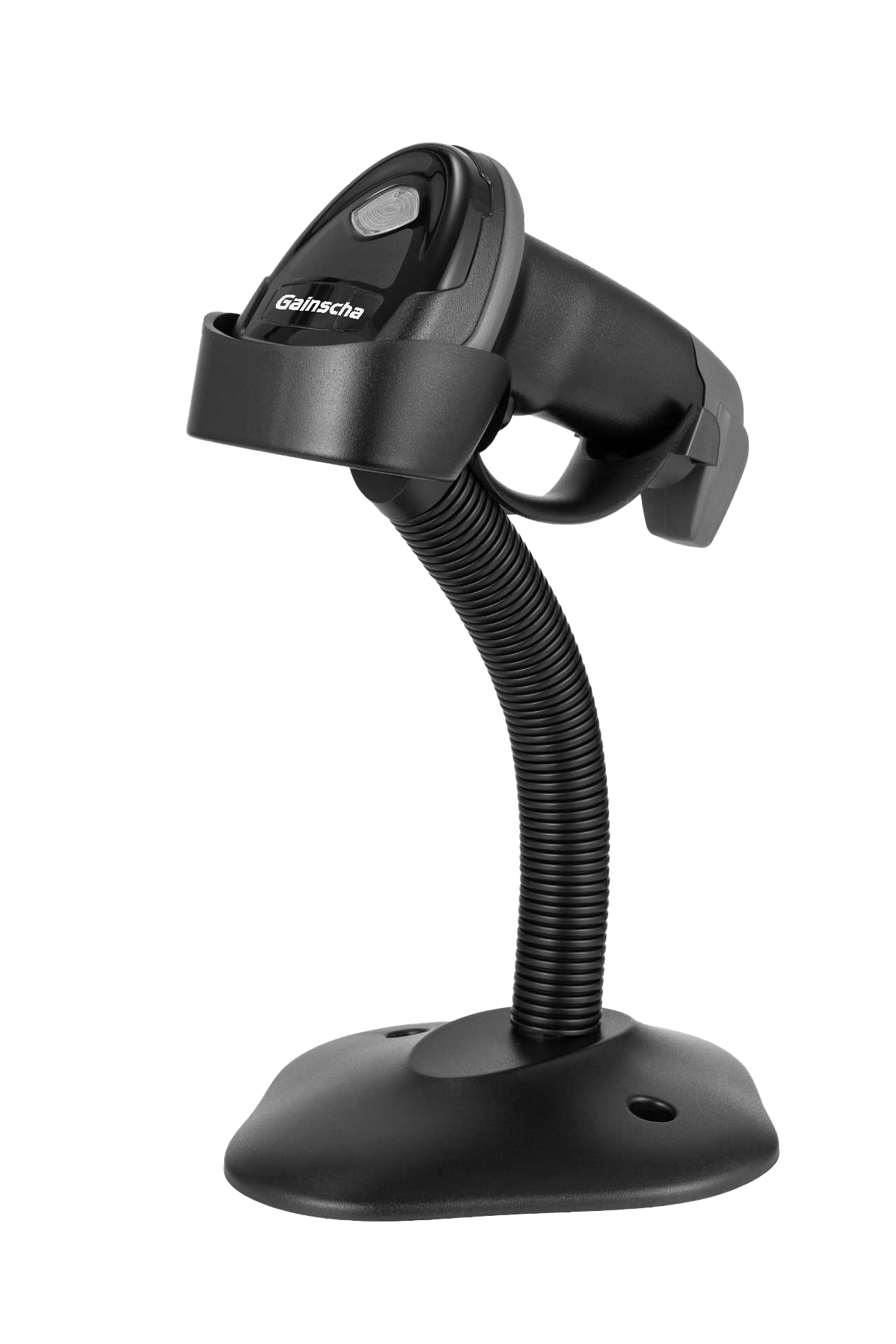

  EC280

• Operation Guide

  Used for general settings

• Power Adapter (optional)

  Output: DC5V 1A, Input: AC100~240V 50~60Hz
  It can be used for serial power supply

• Cable

  USB: It is used for USB communication with connecting barcode scanner and host

  RS232 (optional): lt is used for serial communicationwith connecting barcode scanner and hostDC power supply head is provided as well

  USB Power Cable(optional): lt is used for serial portpower supply with connecting barcode scanner and host

• Product Weight

  150g (without cable)

• Packed Weight

  350g (USB)

• Appearance Dimension

  171.2mm (L)x 67.8mm (w)x 80.9mm (H)

• Packed Dimension

  195mm(L)x105mm (w)x 80mm (H)

• Wire Length

  1.8m

• Port Type

  RJ45 10P10C Connector

• Power Input

  DC 5V 1A

• Current

  146mA (Average Work), 35mA(Standby)

• Working Temperature

  -20 'C to 50 °C

• Storage Temperature

  -40 'C to 70°C

• Working Humidity

  5% to 95%(non-condensing)

• Transportation Vibration Test

  10H@125 RPM

• Communication Mode

  USB (USB-KBW, USB-COM), TTL

• Reading Angle

  Roll: +360°, Pitch:+60°, Skew: +55° CODE39,10mil/0.25mm,PCS90% (Test Conditions)

• Pixel

  300,000 Global

• Reading Precision

  ≥3mi/0.076mm(PCS90%,CODE 39)

• Depth of Field

  20mm~460mm

• Decoding speed

  65 cm/s

• Scanning Mode

  Trigger, induction, Command Control

• Prompt Mode

  LED, Buzzer

• Sensor

  CMOS

• Print Contrast

  ≥15%

• Ambient lllumination

  Dark Environment, indoor Natural Light

• Code System

  1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, interleaved 2 of 5,Matrix 2 of 5, industrial 2 of 5 (Straight 2 of 5), MSl, Codabar (NW-7), GS1 DataBar (Omnidirectional, Limited,Expanded).etc.

  2D: QR Code, Micro QR Code, Data Matrix, PDF417, MicroPDF417, Aztec, etc.
